Product Details

Characteristics

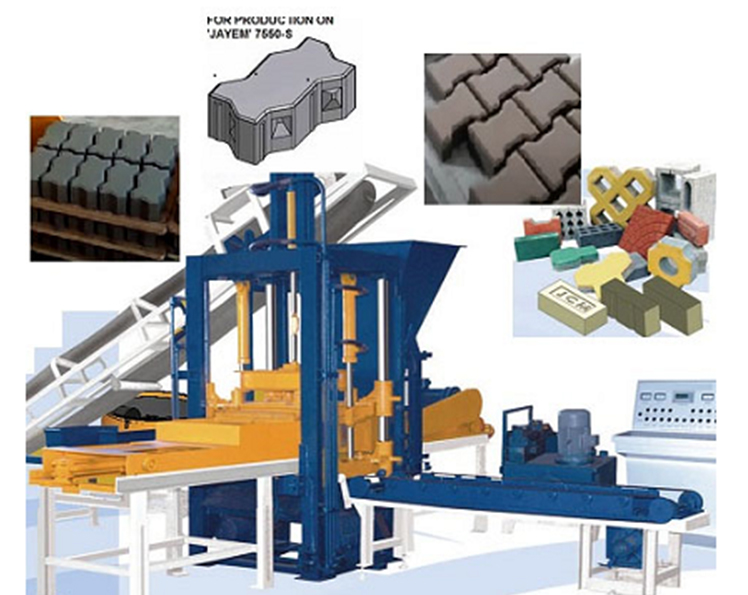

This is automatic Vibro-hydraulic multipurpose Brick/Block inter locking pavers making machine, easy to operate and low maintenance with high efficiency, has an integrated control panel. Complete with conveyor belt and high efficiency Pan-mixer. Suitable for casting Fly-Ash brick/block hollows/solid block inter locking paving block.

Optional 1: Automatic Double Pallet Stacker and be attached on this model.
Optional 2: 3 bin Hydraulic Hopper wit weigt Batching system having separate 3 weight – indicators.
Optional 3: Automatic inline type Batch mixing unit fed by JCB/Loader with cement batcher and water batching system.



Product Capacity

ItemsSize (L x W x H)Psc. /mouldPsc. /HourPsc. /8hoursOne Year (300 days) Production
Solid Bricks230x110x75mm143,36026,8808,064,000
Blocks400x200x200mm25404,3201,296,000
Porous Bricks240x115x90mm8192015,3604,608,000
Paving Blocks200x100x60mm101,44011,5203,456,600




Technical Data

Rating Pressure21MPa
VibrationTable Vibration
Vibration frequency3800-4200r/min
Pallet Size680x535mm
Cycle Time15-20sec
Power19.95 kW
Weight3808kg
