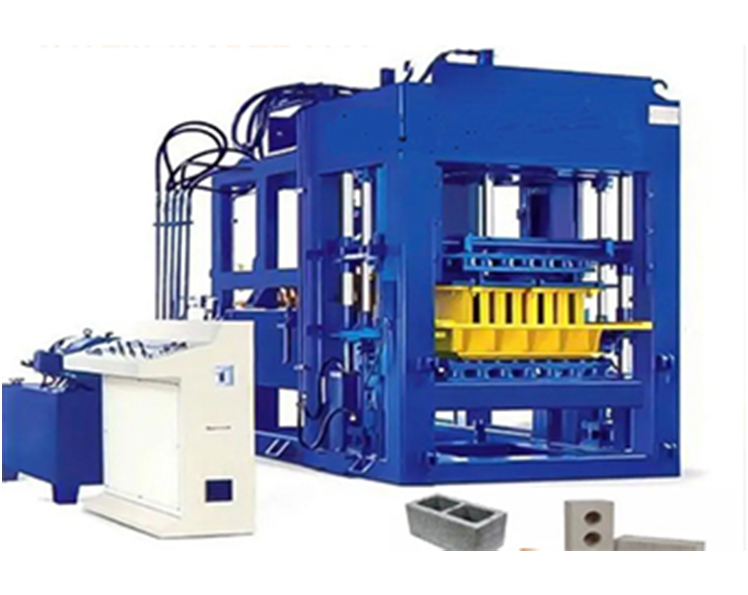

Model-9660 Fully Automatic For Various Concrete Products

We Manufacture Machines to Make Precast Products as Pavers, Blocks, Bricks, Tiles, Interlocking Blocks, Kerb stones etc..

JAYEM MANUFACTURING COMPANY
C-99 Sector 4, Noida - 201301, India

about-area

Product Details

Characteristics

1) Latest technology and automation

2) Integrated Control function

3) Accurate Synchronization

4) High vibration through Vibrating tools

5) Advance vibration modes of high qualit

6) Medium/Large scale production

7) Pallet Stack for automatic pallet stacking on hydraulic trolley

Product Capacity

Items	Size (L x W x H)	Psc. /mould	Psc. /Hour	Psc. /8hours	One Year (300 days) Production
Solid Bricks	230x110x75mm	32	7,680	61,440	1,84,32,000
Blocks	400x200x200mm	7.5	1,350	10,800	32,40,000
Porous Bricks	240x115x90mm	20	4,800	38,400	1,15,20,000
Paving Blocks	200x100x60mm	27	3,888	31,104	93,31,200

Technical Data

Dimension	6800x2090x3000mm
Rating Pressure	21MPa
Vibration	Table Vibration
Vibration frequency	2800-4500r/min
Pallet Size	1100x560mm
Cycle Time	11-25sec
Power	35.88 kW
Weight	9360kg

We believe in continuous research and innovation. We strive to increase our competitiveness by delivering high quality products through agile production processes and by paying careful attention to our clients needs.
